Rice Lake

Rice Lake 69763 920i Programmable HMI Indicator and Controller - Wall Mount Assembly, 115VAC

(No reviews yet) Write a Review
SKU:
69763
On Sale

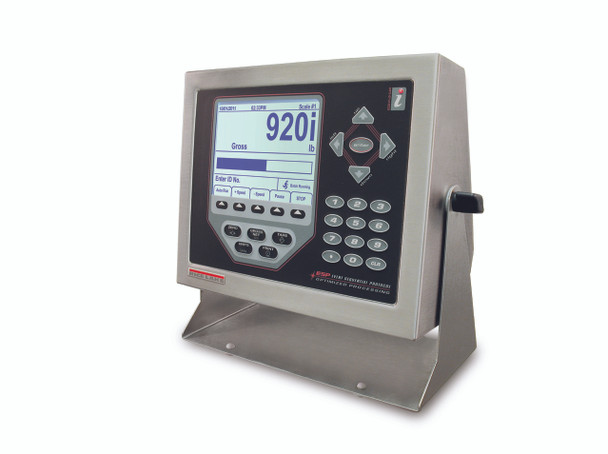

  • Rice Lake 920i Series Programmable Weight Indicator and Controller Side
  • Rice Lake 920i Panel Mount, Deep Mount, Universal Mount, Wall Mount
  • Rice Lake 920i Series Programmable Weight Indicator and Controller Wall Mount
  • Rice Lake 920i Series Programmable Weight Indicator and Controller Front
  • Rice Lake 920i Series Programmable Weight Indicator and Controller In Use
Now: $3,166.25
Was: $3,725.00

Description

Bullseye Scale is proud to bring you the Rice Lake 920i FlexWeigh indicator. The 920i is a well-rounded indicator, controller and weight display selection, led by the impressive and adaptable 920i, delivering more features, more programmability, and more power for your process. The 920i combines performance-driven circuitry, simplified architecture, and customized display features to take your system further. Choose from the universal, panel mount, or wall-mount style.

Up to ten different screens can be programmed to change with any given process, while graphic icons and messages show setpoint and function status. The multi-channel display feature shows the weight on an individual scale or a combination of totalized scales. When used in batching/mixing applications, one 920i is capable of handling multiple scale, flow temperature and pulse. It can control hundreds of I/O setpoints, queuing such things as gates and conveyors. The 920i's complete database capability stores your important data and files.

  • 22 softkeys with 10 user-defined keys

  • Tactile keypad for scale operations, numeric entry and navigation

  • On-screen keyboard available during entry mode (or external keyboard)

  • Supports twenty-eight scales within five different kinds:

    • Analog load cell, multi-range/interval weighing

    • Total scale summing

    • Serial input scales

    • iQUBE² scales

    • Program scales



  • Two to fourteen option slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs, and protocol interfaces

  • iRite™ Programming Software

    • Customizable user applications with event-based functions

    • 150 built-in functions for application processes & data tables



  • Four serial ports supporting RS-232, RS-485, 20mA

  • USB Type A and B replaces Serial on Port 2 (USB model)

  • Alibi memory captures serial port transmissions

  • Configurable data stream format

  • 100 setpoints, 27 configurable setpoint types

  • Six digital I/O for control

  • Three different enclosure types: universal with tilt stand, panel mount and wall mount


Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE !
