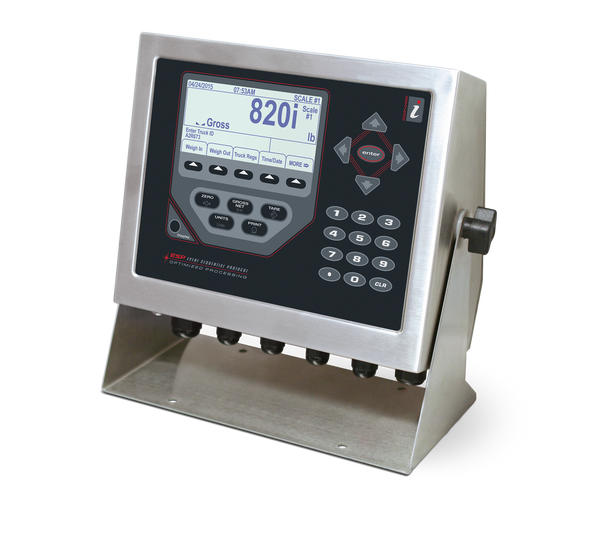

Rice Lake 93011 820i® Programmable Weight Indicator / Controller - 820i®, 115VAC, Dual Channel

This item is discontinued. Click here for our recommended replacement, the RLWS 720i.

CUSTOMIZE YOUR PROCESS

We are proud to feature the Rice Lake 820i®, which, for the most comprehensive combination of function and price, is the instrument of choice. This versatile intelligent model boasts a powerful yet easy-to-use interface that can operate and display up to two scales simultaneously. The 820i® allows users to automate formula selection, batch start up, data recall, or any frequently used process. Built-in software functionality includes programmability for alibi tracking, 25 definable print formats, and multi-range (interval). The 820i® also conveniently stores up to 1,000 truck in/out records for recall at anytime and simplifies truck scale data management with six truck modes and keyed tares.

• LCD backlit display (W x H) 4.6 in x 2.2 in

• One small option slot and one large option slot for pluggable options

• Weight display from 0.5 in to 0.75 in

• Display up to two scales (scale 1, scale 2 and total)

• Five user-defined softkeys

• Weight or millivolt calibration with linearization and geographical compensation

• NEMA Type 4X/IP66 stainless steel enclosure

• Selectable A/D measurement rate up to 960/second

• Power for 16 350-ohm load cells

• 100 setpoints, latched or free-running

• Multi-range/interval

• Peak hold, rate of change

• Audit trail tracking and Alibi™ software

• 1,000-ID truck register for in/out weighing

• User programmable 256 K flash memory

• Onboard data storage 190 K

• Downloadable programs

• Visual programming for easily creating custom programs

• Eight digital I/O (expandable)

• Configurable with Revolution® software

To gain a competitive advantage in today's fast-paced business environment, you need cost-effective solutions that not only optimize your processes but also provide an intelligent, flexible migration path. Introducing the 820i Rice Lake programmable weight indicator/controller. The 820i® revolutionizes basic instrumentation programming, allowing for more cost-effective maintenance and programming support. Unlike many programmable indicators, the 820i features an intuitive user interface that allows the user to automate formula selection, batch start, data recovery, or any frequently used process at the press of a button. With the 820i® on board, increasing the accuracy and improving the efficiency of any weighing process has never been easier.

In any batch dosing application, it is a challenge to provide accurate, quality products, and at the same time try to reduce costs. Fortunately, there is an HMI indicator/controller that addresses this issue — the 820i®. The 820i® programmable indicator/controller gives you immediate access to frequently used functions such as formula selection or batch start with soft programmable keys. Configure up to 100 setpoints to operate as free, sequential, or interlocked operation; In addition, customize setpoints with triggers defined by default weights or events and actions. The 820i can weigh in batches by gross weight, net weight, percentage of the target or by time. Accurate batch weighing and consistent quality are attained by using machine learning or preact flow functions. By presetting the soft keys, fixed messages can be automatically sent to a remote screen. With open connectivity to the most popular interfaces, the 820i® system integration is impeccable. Reproducibility, tighter quality control, waste reduction, system integration, increased productivity and ease of use — that is the power of 820i®.
