Rice Lake 201479 Ready-n-Weigh CW-90B Bench Scale and 482 Plus Indicator Package - 100 lb/50 kg, 12" x 12" x 4.25", 115 VAC, LCD, Numeric Keypad, US Plug-Type B

(No reviews yet) Write a Review
SKU:
201479
On Sale
  • rice-lake-cw90b-with-482plus-indicator-package
  • ricew-lake-cw-90b-with-482-indicator-drawing
Now: $1,445.00
Was: $1,700.00

Description

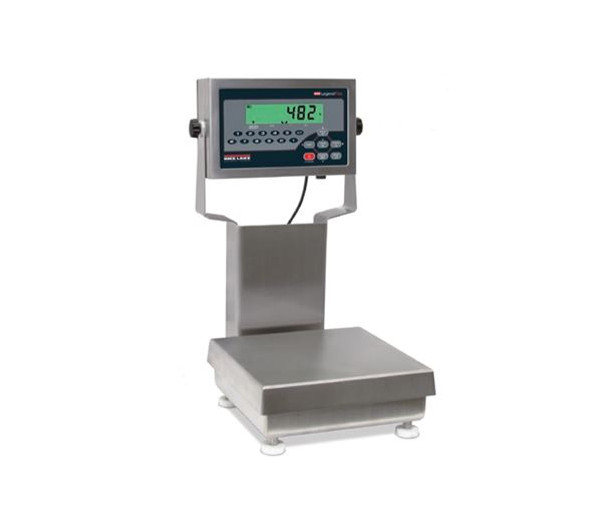

Ready-n-Weigh Bench Scale System CW-90B Bench Scale and 482/482 Plus Indicator Package

Standard Features
• Package includes scale with IP67 aluminum environmentally sealed load cell with an indicator and 12-inch column
• Factory calibrated, with indicator setup and configured for 5,000 divisions
• Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
• AC Power 100-240 VAC
• LCD backlit indicator display for a variety of environments
• Battery backed time and date
• Standard RS-232 serial ports for connecting to peripherals
• Ethernet TCP/IP, sold as an option
• Portable applications require internal battery package, sold as an option

CW-90B Specifications
Load Cell, NTEP Certified: IP67 aluminum, environmentally sealed
Scale Construction: 304 stainless steel
Maximum Overload: 180% to 200% depending on capacity
Overload Protection: Five-point, independently adjusted
Scale Frame: AISI304L, straight line finish, Ra = 45 +/- 10
Scale Cover: AISI304L, straight line finish, Ra = 45 +/- 10
Cable Length: 34 in
Compensated Temperature Range: 14° F to 104° F (-10° C to 40° C)
Approvals: NTEP CC 95-072, Class III 5,000 d, Measurement Canada AM-5082, Class III 5,000 d, Load cell is cFMus Approved
Warranty: Two-year limited warranty

482/482 Plus Specifications
Communication Ports: Com 1: RS-232 full duplex, Com 2: RS-232 full duplex or 20 mA simplex, continuous. Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Optional Ethernet and USB Board: USB five-pin header for PC, printer or flash drive. Ethernet TCP/IP, RJ45 jack, server and client ports.
Display: LCD backlit display, Transmissive/Transflective, 0.8 in (20 mm), six-digit, seven-segment
Status Annunciators: Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons: Flat membrane panel, embossed keys, tactile feel
Rating/Material: Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Approvals: NTEP CC 12-123, Measurement Canada AM-5892, CE Marked, UL/cUL Listed

Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE !
