Rice Lake

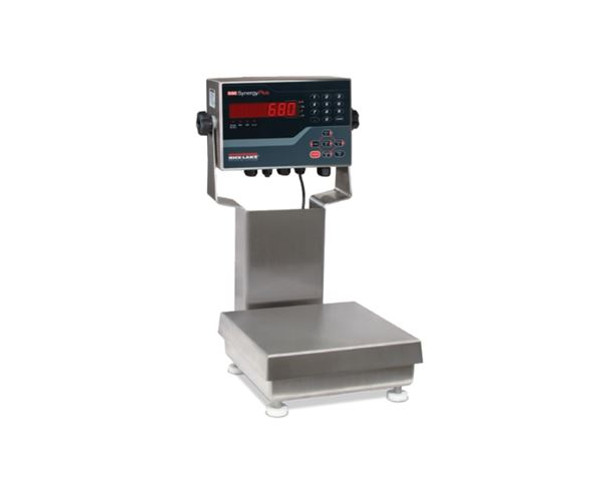

Rice Lake 201414 Ready-n-Weigh CW-90XB Bench Scale and 680 Indicator Package - 100 lb/50 kg, 12" x 12" x 4.25", 115-230 VAC, LED, Numeric, US Plug-Type B

(No reviews yet) Write a Review
SKU:
201414
On Sale
  • rice-lake-cw90xb-with-680-indicator-package
  • rice-lake-cw90xb-with-680-indicator-package-drawing
Now: $1,982.20
Was: $2,332.00

Description

Ready-n-Weigh Bench Scale System CW-90XB Bench Scale and 482/482 Plus Indicator Package

Standard Features
• Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch column
• Factory calibrated, with indicator setup and configured for 5,000 divisions
• Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
• AC Power 100-240 VAC
• Full numeric keypad
• LCD backlit indicator display for a variety of environments
• Battery backed time and date
• Standard RS-232 serial ports for connecting to a variety of peripherals
• Ethernet TCP/IP comes standard

CW-90XB Specifications
Load Cell, NTEP Certified: IP69K stainless steel and hermetically sealed
Scale Construction: 304 stainless steel
Maximum Overload: 180 to 200% depending on capacity
Overload Protection: Five-point, independently adjusted
Scale Frame: AISI304L, straight line finish, Ra = 45 +/- 10
Scale Cover: AISI304L, straight line finish, Ra = 45 +/- 10
Cable Length: 34 in
Compensated Temperature Range: 14° F to 104° F (-10° C to 40° C)
Approvals: NTEP CC 95-072, Class III 5,000 d, Measurement Canada AM-5082, Class III 5,000 d, Load cell is FM approved
Scale Warranty: Three-year limited warranty (includes water ingress)
Indicator Warranty: Two-year limited warranty

680 Specifications
Communication Ports: Two RS-232 (three-wire), RS-485/422 (two-wire or four-wire), Micro USB (device), Ethernet TCP/IP (10/100)
Display: Seven 0.8 in tall, seven-segment digits
Status Annunciators: Eight LED annunciators
Keys/Buttons: Flat membrane panel, tactile feel (18 buttons plus ON/OFF)
Rating/Material: Rating: IP69K
Material: AISI 304 Stainless Steel
680 Synergy Series Approvals: NTEP CC 12-123, Measurement Canada AM-5892, UL/cUL Listed, CE Marked

Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE !

Brochures
rice-lake-cw90xb-with-680-indicator-package-brochure

View AllClose

Additional Information

capacity-1:
100lb
udf_name_1:
LOAD CELL, NTEP CERTIFIED
udf_name_2:
MAXIMUM OVERLOAD
udf_name_3:
OVERLOAD PROTECTION
udf_name_4:
APPROVALS
udf_name_5:
WARRANTY
udf_value_1:
IP67 aluminum and environmentally sealed
udf_value_2:
180 to 200% depending on capacity
udf_value_3:
Five-point, independently adjusted
udf_value_4:
NTEP CC 95-072, Class III 5,000 d Measurement Canada AM-5082, Class III 5,000 d Load cell is cFMus
udf_value_5:
Two-year limited warranty
cart_price:
612.0000
amazon_brand:
Rice Lake
options_capacity:
12x12, 100lb
brand_google:
RICE LAKE WEIGHING SYSTEMS
ship_length:
18.0000
ship_width:
18.0000
ship_height:
12.0000
capacity_units:
lb
capacity_new:
100.0000
Capacity:
100.0000
UDF Value 5:
Two-year limited warranty
Dimension Height:
12.0000
Dimension Width:
18.0000
Dimension Length:
18.0000
Brand:
RICE LAKE WEIGHING SYSTEMS
Available Options:
12x12, 100lb
Amazon Brand:
RICE LAKE
Cart Price:
612.0000
CAPACITY:
100lb
UDF Value 3:
Five-point, independently adjusted
UDF Value 4:
NTEP CC 95-072, Class III 5,000 d Measurement Canada AM-5082, Class III 5,000 d Load cell is cFMus
UDF Value 2:
180 to 200% depending on capacity
UDF Value 1:
IP67 aluminum and environmentally sealed
UDF Name 5:
WARRANTY
UDF Name 4:
APPROVALS
UDF Name 3:
OVERLOAD PROTECTION
UDF Name 2:
MAXIMUM OVERLOAD
UDF Name 1:
LOAD CELL, NTEP CERTIFIED
Capacity Units:
lb
