Rice Lake

Rice Lake 201321 Ready-n-Weigh CW-90B Bench Scale and 680 Indicator Package - 50 lb/25 kg, 12" x 12" x 4.25", 115-230 VAC, LED, Numeric, Euro Plug-Type E

(No reviews yet) Write a Review
SKU:
201321
On Sale
  • rice-lake-cw90b-with-680-indicator-package
  • rice-lake-cw90b-with-680-indicator-drawing
Now: $1,504.50
Was: $1,770.00

Description

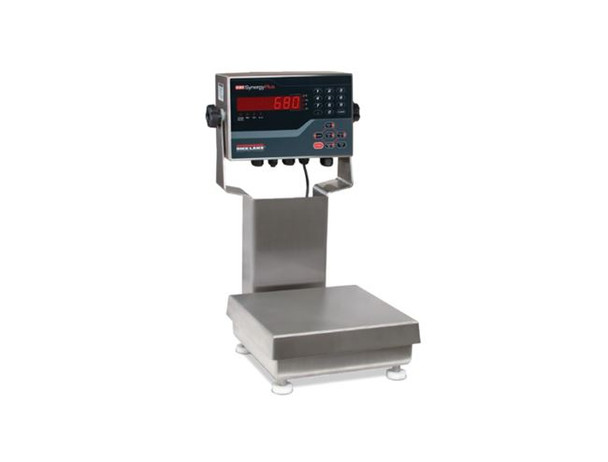

Ready-n-Weigh Bench Scale System CW-90B Bench Scale and 680 Indicator Package

Standard Features
• Package includes scale with IP67 aluminum environmentally sealed load cell with an indicator and 12-inch column
• Factory calibrated, with indicator setup and configured for 5,000 divisions
• Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
• AC Power 100-240 VAC
• LCD backlit indicator display for a variety of environments
• Battery backed time and date
• Standard RS-232 serial ports for connecting to a variety of peripherals
• Ethernet TCP/IP comes standard

CW-90B Specifications
Load Cell, NTEP Certified: IP67 aluminum, environmentally sealed
Scale Construction: 304 stainless steel
Maximum Overload: 180% to 200% depending on capacity
Overload Protection: Five-point, independently adjusted
Scale Frame: AISI304L, straight line finish, Ra = 45 +/- 10
Scale Cover: AISI304L, straight line finish, Ra = 45 +/- 10
Cable Length: 34 in
Compensated Temperature Range: 14° F to 104° F (-10° C to 40° C)
Approvals: NTEP CC 95-072, Class III 5,000 d, Measurement Canada AM-5082, Class III 5,000 d, Load cell is cFMus Approved
Warranty: Two-year limited warranty

680 Specifications
Communication Ports: Two RS-232 (three-wire), RS-485/422 (two-wire or four-wire), Micro USB (device), Ethernet TCP/IP (10/100)
Display: Seven 0.8 in tall, seven-segment digits
Status Annunciators: Eight LED annunciators
Keys/Buttons: Flat membrane panel, tactile feel, (18 buttons plus ON/OFF)
Rating/Material: Rating: IP69K (IP66 with RJ45)
Material: AISI 304 Stainless Steel
Approvals: NTEP CC 12-123, Measurement Canada AM-5892, UL/cUL Listed, CE Marked

Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE !
