Rice Lake 196665 RoughDeck® Rough-n-Ready System 115 VAC - 4' x 4' x 3.5" Floor Scale and 680 Canadian Weights and Measures Approved Certified Indicator Package with Tilt Stand - 2,500 kg

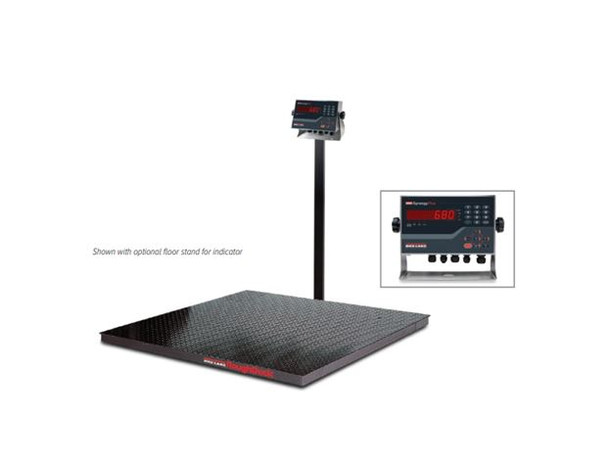

The RoughDeck® Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4 ft RoughDeck® floor scale with one of five quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck® Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.

Standard Features
• Package includes: RoughDeck® HP 4 ft x 4 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 680 indicator
• Package is factory-calibrated for 5,000 divisions
Scale:
• Heavy-duty design with structural steel under support
• Four NTEP certified alloy steel shear beam load cells
• Side-access JB4SS TuffSeal® junction box
Indicator:
• Bright seven-digit, seven-segment LED display
• Battery backed time and date
• Full numeric keypad
• Ethernet TCP/IP

RoughDeck® Specifications
End Load Capacity: 200% full scale at 1,000 lb, 100% full scale at 2,000 lb and 5,000 lb, 80% full scale at 10,000 lb
Cable Length: 20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt: Hole (1/2-20 NF) located in center of deck for easy lifting
Warranty (limited): RoughDeck® HP weldment five years, load cells two years, all other components one year
Approvals: NTEP CC 92-001, Class III 5,000d, Measurement Canada AM-4827, Class III 5,000d

680 Specifications
Communication Ports: Two RS-232 (three-wire), RS-485/422 (two-wire or four-wire), Micro USB (device), Ethernet TCP/IP (10/100)
Display: Seven 0.8 in tall, seven-segment digits
Status Annunciators: Eight LED annunciators
Keys/Buttons: Flat membrane panel, tactile feel (18 buttons plus ON/OFF)
Rating/Material: Rating: IP69K IP66 with RJ45 Material: AISI 304 Stainless Steel
680 Synergy Series Approvals: NTEP CC 12-123, Measurement Canada AM-5892, UL/cUL Listed, CE Marked
