Rice Lake
Rice Lake 155669 RoughDeck® Rough-n-Ready System 115 VAC - 4' x 4' x 3.5" Floor Scale and Canadian Weights and Measures Approved 480 Indicator Package - 5,000 kg
(No reviews yet)
Write a Review
- SKU:
- 155669
On Sale
Description

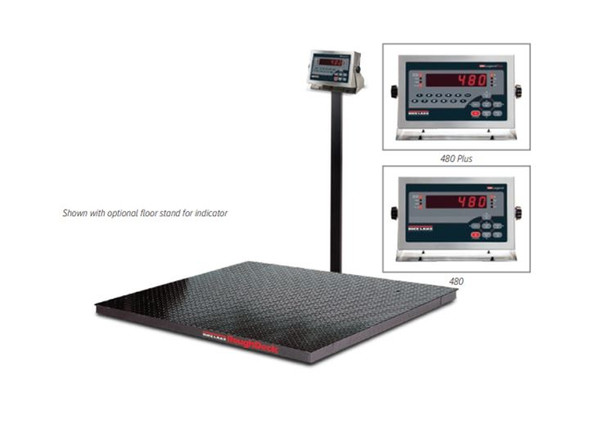

Rice Lake 155669 RoughDeck® Rough-n-Ready System 115 VAC - 4' x 4' x 3.5" Floor Scale and Canadian Weights and Measures Approved 480 Indicator Package - 5,000 kg
Standard Features
• Package includes: RoughDeck® HP 4 ft x 4 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 482/482 Plus indicator
• Package is factory-calibrated for 5,000 divisions
Scale:
• Heavy-duty design with structural steel under support
• Four NTEP certified alloy steel shear beam load cells
• Side-access JB4SS TuffSeal® junction box
Indicator:
• LCD display
• Time and date battery backed
• Numeric keypad (482 Plus)
• Two independent serial ports, RS-232 and 20 mA
RoughDeck Specifications
End Load Capacity: 200% full scale at 1,000 lb, 100% full scale at 2,000 lb and 5,000 lb, 80% full scale at 10,000 lb
Cable Length:20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt: Hole (1/2-20 NF) located in center of deck for easy lifting
Warranty (limited): RoughDeck HP weldment five years, load cells two years, all other components one year
Approvals: NTEP CC 92-001, Class III 5,000d Measurement Canada AM-4827, Class III 5,000d
482/482 Plus Specifications
Communication Ports: Com 1: RS-232 full duplex, Com 2: RS-232 full duplex or 20 mA simplex, continuous Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Display: LCD backlit display, Transmissive/Transflective 0.8 in (20 mm), six-digit, seven-segment
Status Annunciators: Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons: Flat membrane panel, embossed keys, tactile feel
Rating/Material: Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Approvals: NTEP CC 12-123, Measurement Canada AM-5892, CE Marked, UL/cUL Listed
View AllClose
Standard Features
• Package includes: RoughDeck® HP 4 ft x 4 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 482/482 Plus indicator
• Package is factory-calibrated for 5,000 divisions
Scale:
• Heavy-duty design with structural steel under support
• Four NTEP certified alloy steel shear beam load cells
• Side-access JB4SS TuffSeal® junction box
Indicator:
• LCD display
• Time and date battery backed
• Numeric keypad (482 Plus)
• Two independent serial ports, RS-232 and 20 mA
RoughDeck Specifications
End Load Capacity: 200% full scale at 1,000 lb, 100% full scale at 2,000 lb and 5,000 lb, 80% full scale at 10,000 lb
Cable Length:20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt: Hole (1/2-20 NF) located in center of deck for easy lifting
Warranty (limited): RoughDeck HP weldment five years, load cells two years, all other components one year
Approvals: NTEP CC 92-001, Class III 5,000d Measurement Canada AM-4827, Class III 5,000d
482/482 Plus Specifications
Communication Ports: Com 1: RS-232 full duplex, Com 2: RS-232 full duplex or 20 mA simplex, continuous Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Display: LCD backlit display, Transmissive/Transflective 0.8 in (20 mm), six-digit, seven-segment
Status Annunciators: Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons: Flat membrane panel, embossed keys, tactile feel
Rating/Material: Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Approvals: NTEP CC 12-123, Measurement Canada AM-5892, CE Marked, UL/cUL Listed
Order Now or Call an Industrial Scale Specialist at 877-65-SCALE !
Brochures
rice-lake-roughdeck-brochure rice-lake-weighing-systems-480-480-plus-legend-indicator-specs
