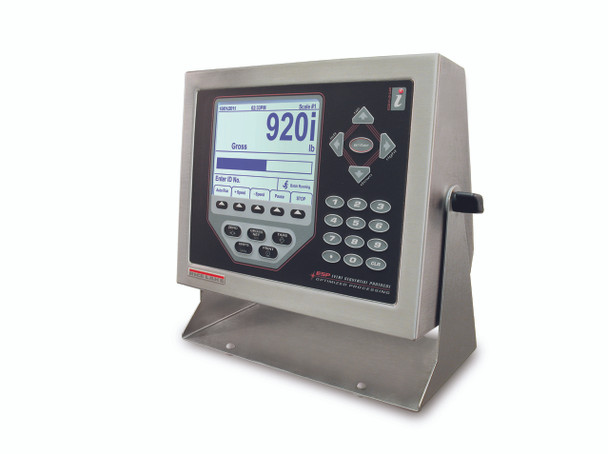

Rice Lake 120099 920i® Programmable Weight Indicator and Controller - Panel Mount, 230VAC, with Continental Europe (CEE 7/7) Plug, Dual Channel, with USB Connector

Flexibility. Power. Simplicity. It's all in the box.

We are excited to introduce the 920i indicator which is a well-rounded indicator, controller and weight display selection, led by the impressive and adaptable 920i, delivering more features, more programmability, and more power for your process. The 920i combines performance-driven circuitry, simplified architecture, and customized display features to take your system further. Choose from the universal, panel mount, or wall-mount style. There is also a model with the addition of integrated USB for more seamless communication with external devices.

The 920i® weight indicator and process controller blends revolutionary user interfaces, total flexibility and processing performance with the simplicity of a basic weight indicator. A crisp, highly customizable LCD graphical display, programmable softkeys and industry recognized electronics are surrounded by a virtually indestructible enclosure to create one of the industry’s most trusted weight indicators and process controllers.

Adding an entirely new dimension in flexibility for solution providers and users alike, the 920i indicator/controller brings simplified customization at a fraction of the cost of traditional process instrumentation. From tailored basic weighing to complex process automation, the 920i gives you features, programmability and power for your process.

Up to ten different screens can be programmed to change with any given process, while graphic icons and messages show setpoint and function status. The multi-channel display feature shows the weight on an individual scale or a combination of totalized scales. When used in batching/mixing applications, one 920i is capable of handling multiple scale, flow temperature and pulse. It can control hundreds of I/O setpoints, queuing such things as gates and conveyors. The 920i's complete database capability stores your important data and files.

• Large 4.6" W x 3.4" H, 320 x 240 pixel back-lit LCD graphical display


• Selectable character sizes from .25" to 1.2"


• Display up to four scale channels with required Legal for Trade information per screen


• Five displayed softkeys with 10 user-defined and 14 preset functions per screen


• Selectable A/D measurement rate up to 960/second


• Power for (16) 350 Ω load cells per A/D board


• Peak hold, rate of change


• Audit trail tracking and alibi storage


• Multiple range/interval weighing


• Four bidirectional communication ports


• Local/remote keypress operation


• Operator prompts/256 widgets


• Multiple screens (program control)


• Eight onboard databases


• Six onboard digital I/O


• 100 configurable setpoints, 30 types


• Two onboard option card slots


• 1,000-ID truck registers for in/out weighing


• Programmable ticket formats 20 auxiliary print formats


• ESP event-driven processing


• User programmable 128 K flash memory


• iQUBE2® connectivity


• 32 individual scale accumulators


• NEMA Type 4X/IP66 stainless steel enclosure


• PS/2 or USB keyboard port for data entry
