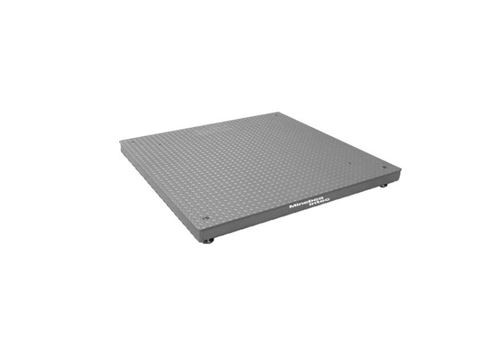

Minebea Intec Midrics MAPP4U-10000NN-N Painted Floor Scale - 10,000 lb Capacity, 48" x 48", Legal For Trade

The industrial floor scales MAPP4U are the most durable floor scales on the market. The rugged construction and heavy duty load cells enable them to withstand every day use in the most demanding applications.

Floor scales designed to survive extreme abuse

The MAPP4U features a specially formulated and durable two-part epoxy paint finish. The epoxy coating provides excellent hardness and protects against chipping and wear. The epoxy coating is also more resistant than typical coatings to salt water, cleaning agents, mild acids, solvents and shop chemicals.

The MAPP4U standard 5K and 10K capacity platforms utilize 1/4” (minimum) tread plate steel decking. The use of heavy deck plate ensures long term structural integrity of the platform. The thick decking will better resist deformation when the platform is placed in a high-use application.

MAPP4U features high quality plated alloy steel shear beam load cells. The cells have low sensitivity to axial loading, excellent accuracy and long term measurement stability. The cells are environmentally protected (IP67) and can be safely used outdoors.

The weighbridge utilizes a formed c-channel structural support member. The special c-channel features a taller leg than the structural channel for greater bending resistance. The c-channel height completely closes the load cell body for protection.

• All MAPP4U platforms are NTEP approved for 5,000d
• All Platforms come with 15-foot home run cable

Base only - indicator sold separately.

Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE !
